In a sleek and streamlined shape, we?€?ve cleverly packed 6.5 kWh of capacity using NMC cells. Our advanced BMS, featuring an exclusive Triple Safety Redundancy system, adds to this innovation.

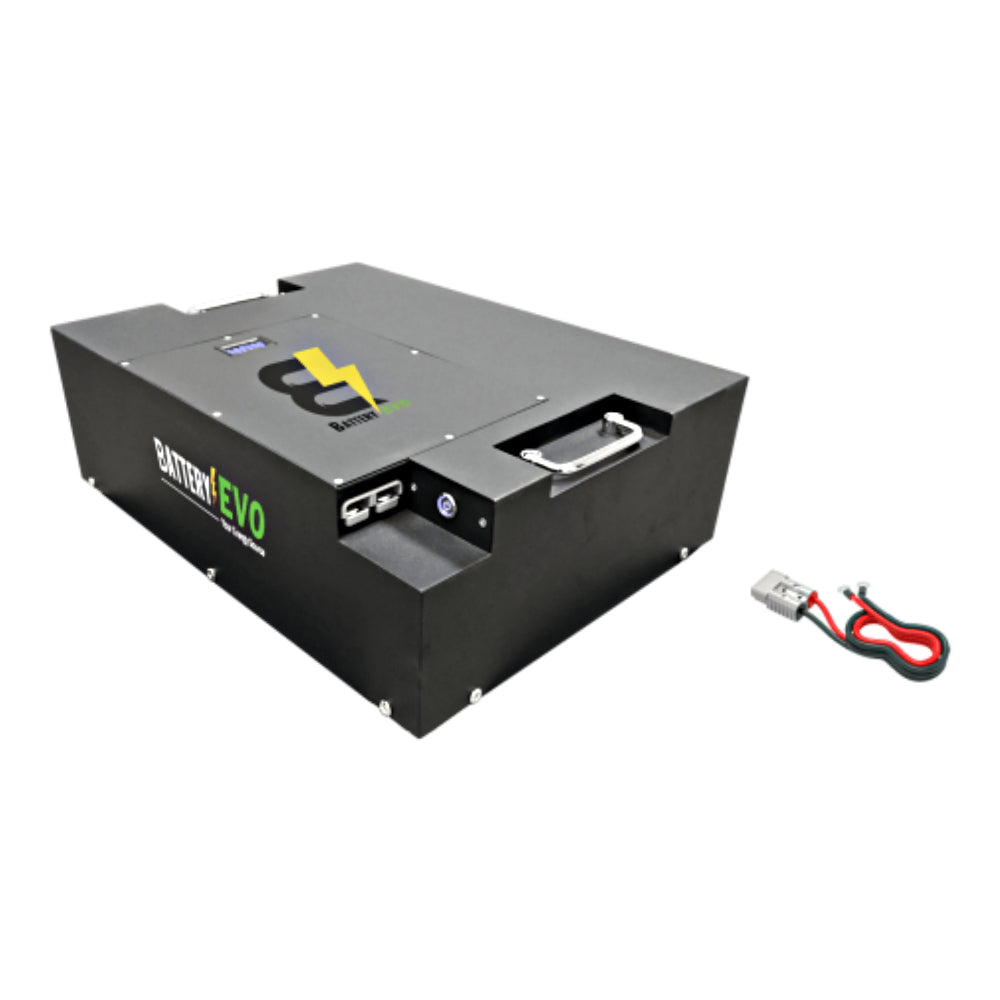

Included Components:
36V REINDEERx1
6AWG 4FT BE175 to Ring Terminal Cablex1
SKU:
EVO-RNDR-36065-G1
System Voltage:
36V
Nominal Voltage:
36.0V
Chemistry:
NMC
kWh Capacity:
6.5kWh
Ah Capacity:
180Ah
Charging Voltage:
41V - 42V
Max Charge Voltage:
42V
Operating Voltage Range:
30V - 42V
Suggested Low Voltage Cutoff:
30V - 36V
Cell Configuration:
10S3P
Max Continuous Discharge Current:
150A
Max Continuous Power:
5400W
Max Discharge Peak Current:
300A (5 seconds)
Max Charge Current:
150A
Charge Temperature Range:
-20??C (-4??F) / 55??C (131??F)
Discharge Temperature Range:
-20??C (-4??F) / 55??C (131??F)
Optimal Discharge Temperature Range:
15??C (59??F) / 35??C (95??F)
Storage Temperature Range:
-5??C (23??F) / 35??C (95??F) (Max 6 Months)
Weight:
100lbs (45.4kg)
Depth:
20.45in (519.4mm)
Width:
15.35in (389.9mm)
Height:
6.5in (165.1mm)
Safety Features:
Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections)
