An advanced LiFePO4 solution designed to enhance your off-grid, emergency, or even worksite power supply. Whether you want to simply upgrade your power system or equip yourself with a battery for backup energy, the MUSTANG is the perfect choice.

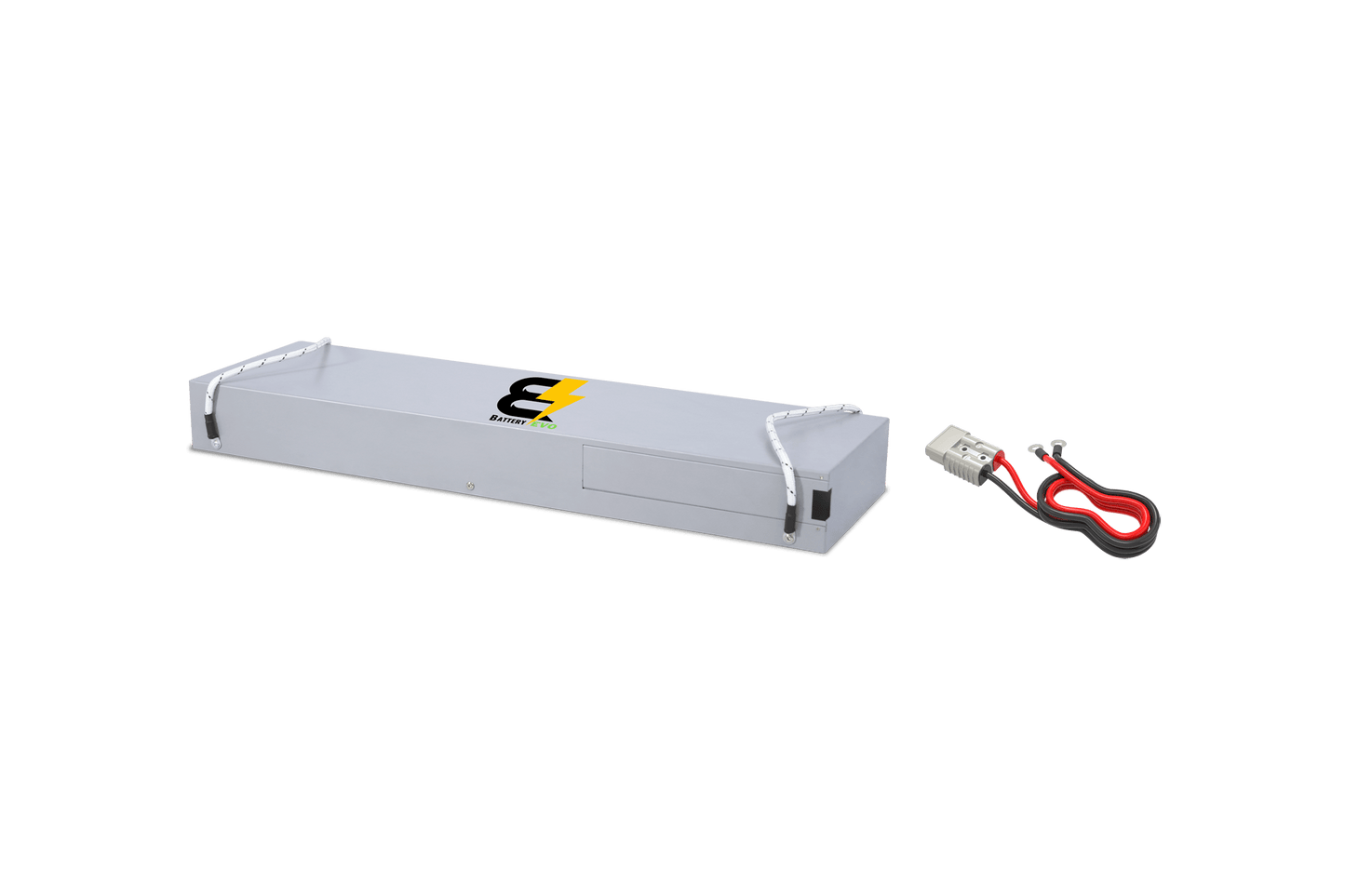

Included Components:
48V MUSTANGx1
4AWG 4FT BE175 to Ring Terminal Cablex1
SKU:
EVO-MSTG-48070-G1
System Voltage:
48V
Nominal Voltage:
51.2V
Chemistry:
LFP
kWh Capacity:
7 kWh
Ah Capacity:
140Ah
Charging Voltage:
55.2V - 58.4V
Max Charge Voltage:
58.8V
Operating Voltage Range:
44.8V - 58.4V
Suggested Low Voltage Cutoff:
44.8V - 50.8V
Cell Configuration:
16S1P
Max Continuous Discharge Current:
150 A
Max Continuous Power:
7680 W
Max Discharge Peak Current:
300 A (5 seconds)
Max Charge Current:
150 A
Charge Temperature Range:
0??C (32??F) / 55??C (131??F)
Discharge Temperature Range:
-20??C (-4??F) / 55??C (131??F)
Optimal Discharge Temperature Range:
15??C (59??F) / 35??C (95??F)
Storage Temperature Range:
-5??C (23??F) / 35??C (95??F) (Max 6 Months)
Weight:
146lbs (66.2kg)
Depth:
39.9in (1013.5mm)
Width:
11.6in (294.6mm)
Height:
4.4in (111.8mm)
Safety Features:
Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections)
