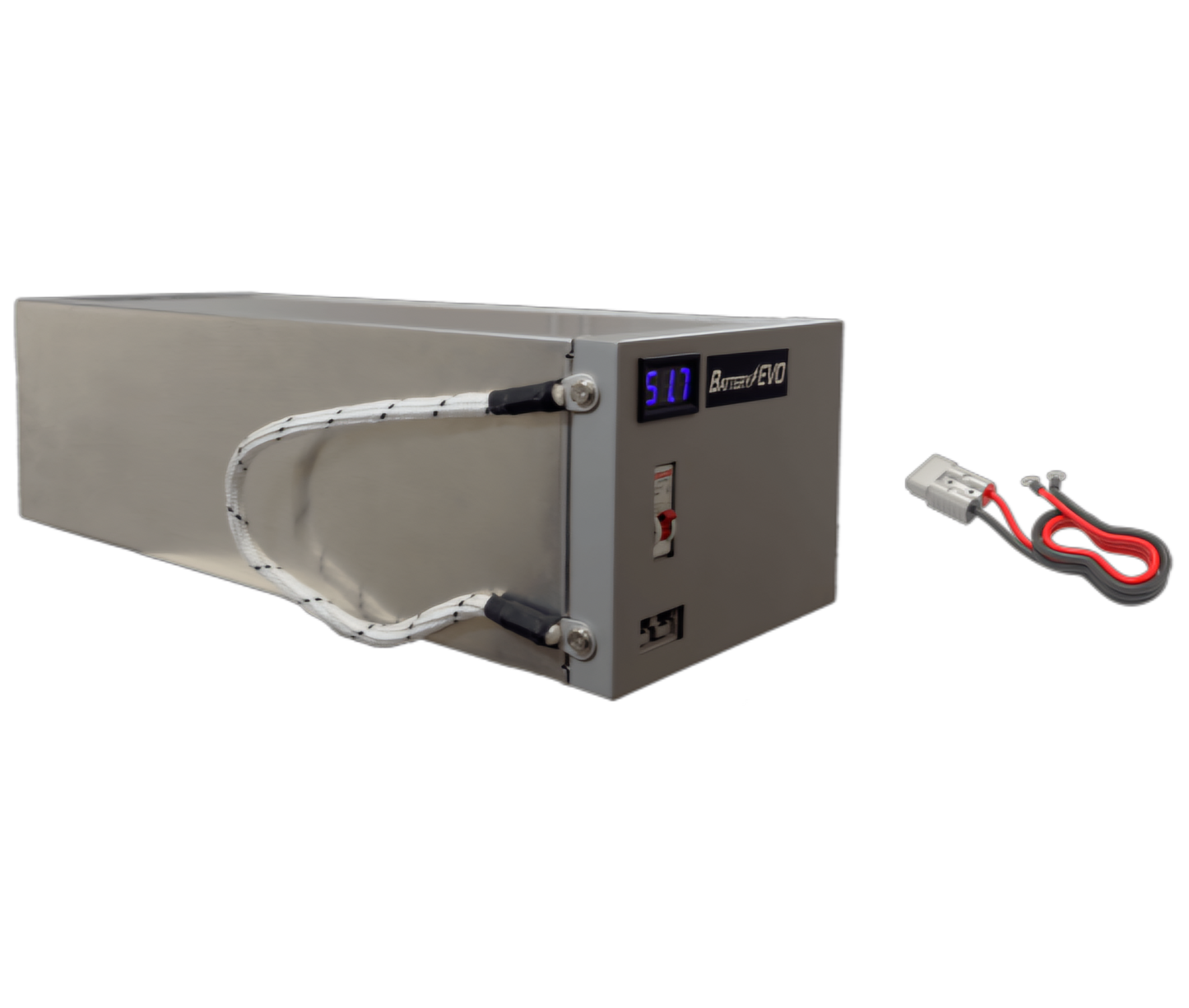

The CHIHUAHUA might look petite, but it?€?s a game-changer in terms of reliability, efficiency, and energy capacity for your golf cart. Equipped with cutting-edge lithium-ion cells, a robust 63A Safety Breaker, and our state-of-the-art Battery Management System (BMS) featuring a Thermal Management System and comprehensive protective features, the CHIHUAHUA is set to outperform any 48V lead-acid counterpart.
Included Components:
48V CHIHUAHUAx1
8AWG 4FT BE50 to Ring Terminal Cablex1
SKU:
EVO-CHUA-48020-G1
System Voltage:
48V
Nominal Voltage:
51.2V
Chemistry:
LFP
kWh Capacity:
2kWh
Ah Capacity:
40Ah
Charging Voltage:
55.2V - 58.4V
Max Charge Voltage:
58.4V
Operating Voltage Range:
44.8V - 58.4V
Suggested Low Voltage Cutoff:
44.8V - 50.8V
Cell Configuration:
16S
Max Continuous Discharge Current:
60A
Max Continuous Power:
3000W
Max Discharge Peak Current:
120A (5 seconds)
Max Charge Current:
50A
Charge Temperature Range:
0??C (32??F) / 60??C (140??F)
Discharge Temperature Range:
-20??C (-4??F) / 55??C (131??F)
Optimal Discharge Temperature Range:
15??C (59??F) / 35??C (95??F)
Storage Temperature Range:
-5??C (23??F) / 35??C (95??F) (Max 6 Months)
Weight:
57lbs (25.85kg)
Depth:
20.5in (520.7mm)
Width:
8.5in (215.9mm)
Height:
6.5in (165.1mm)
Safety Features:
Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections)
